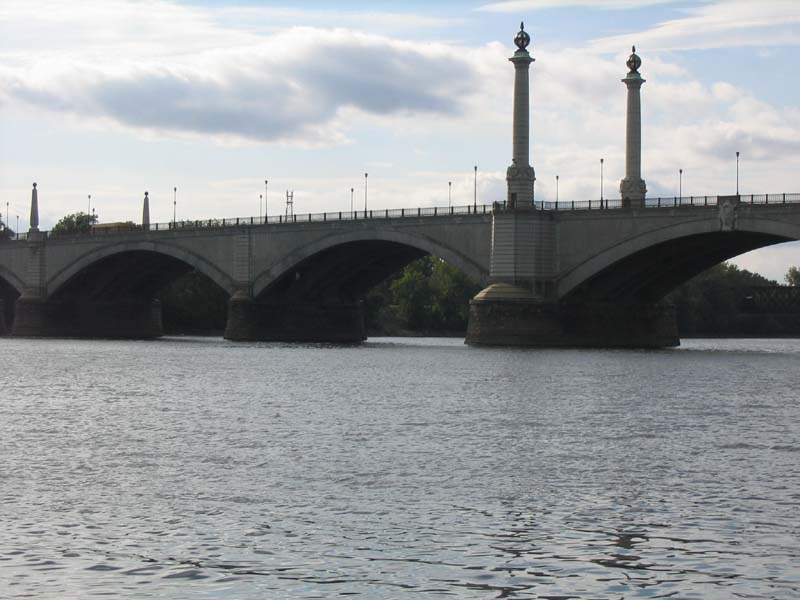

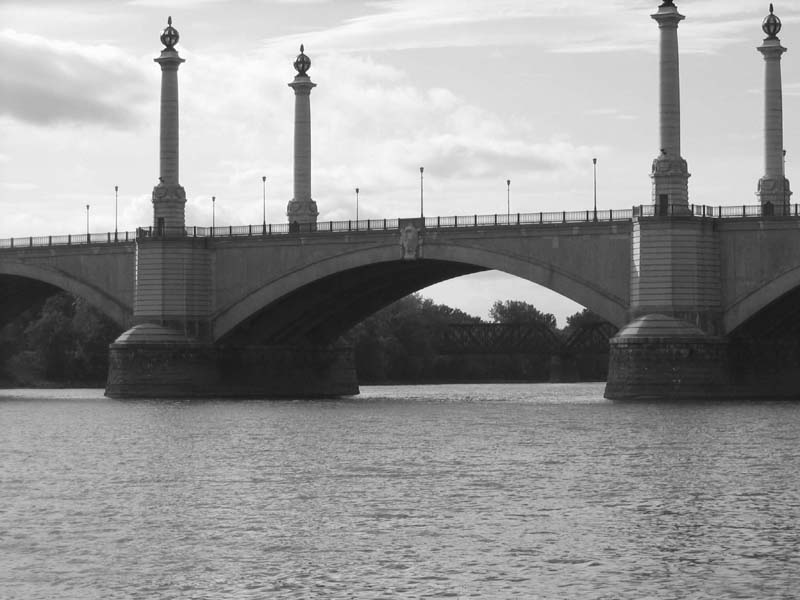

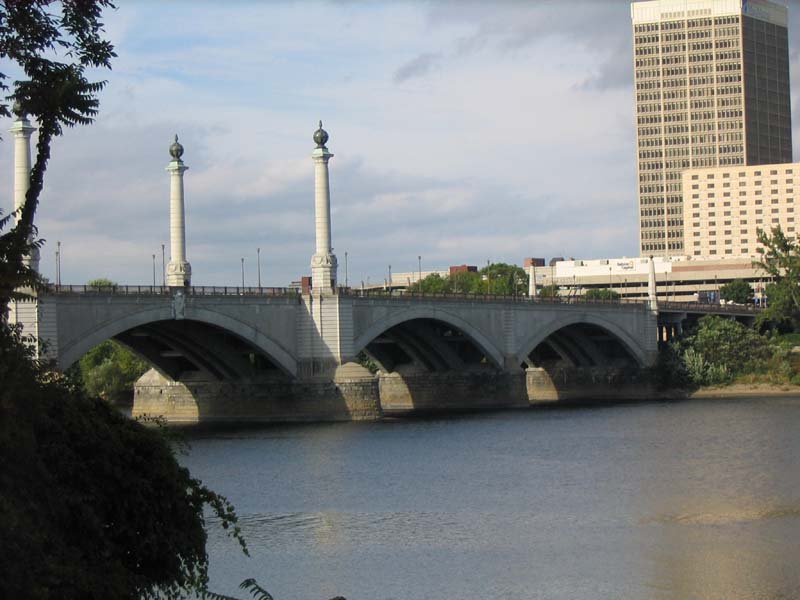

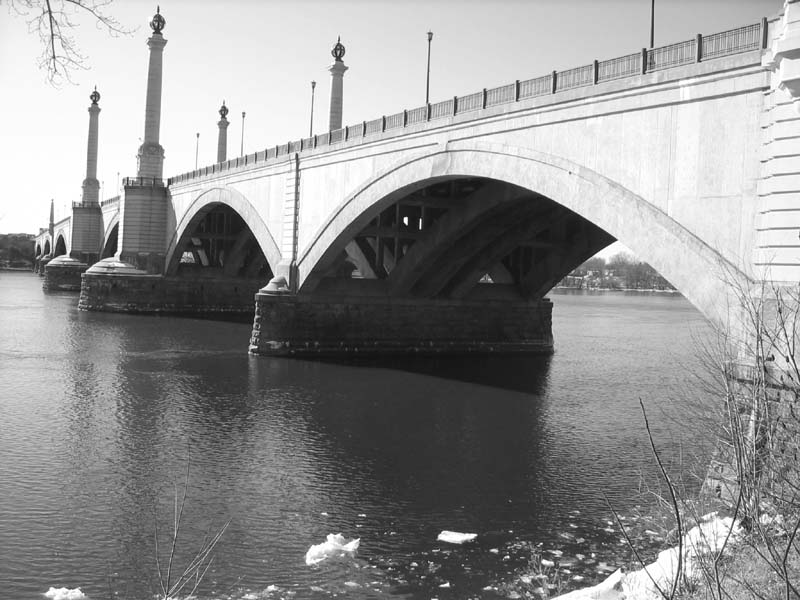

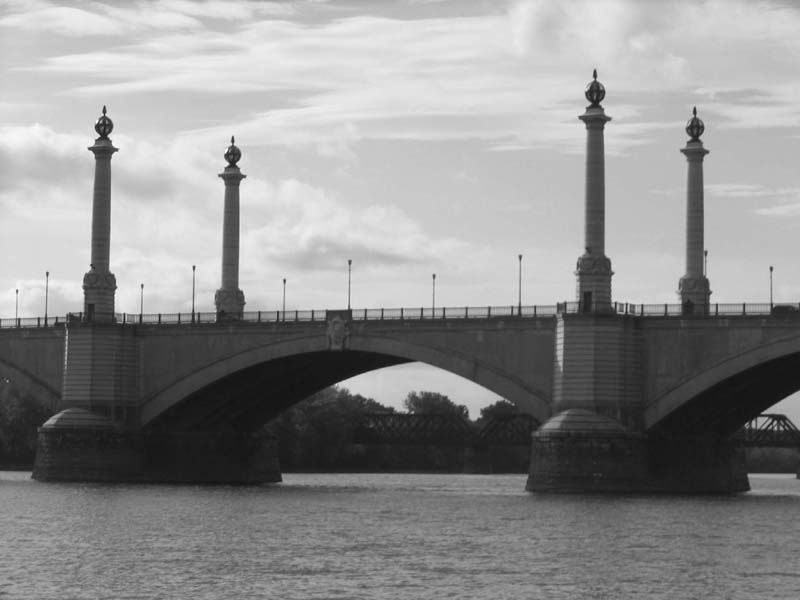

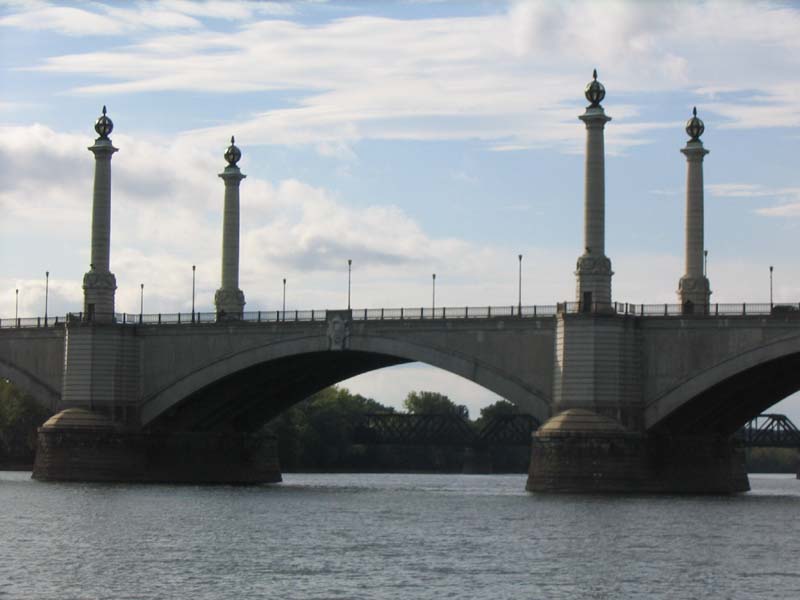

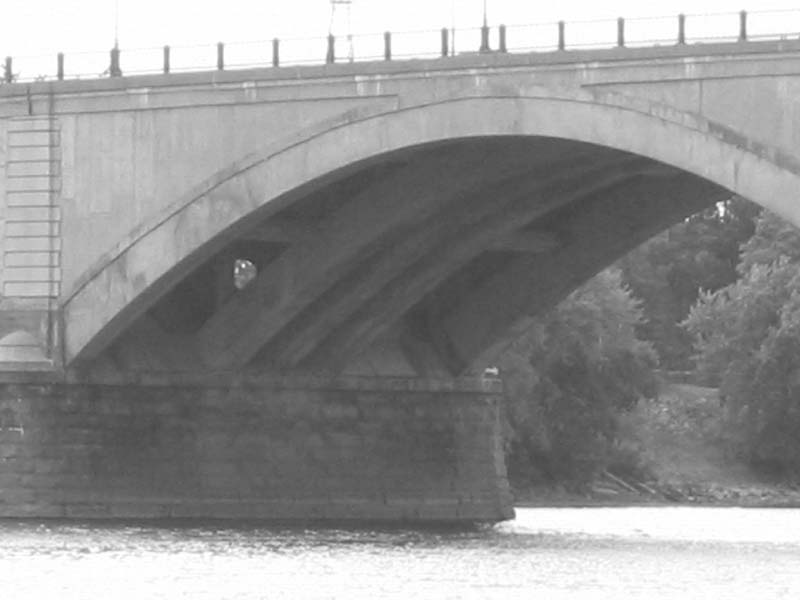

Memorial Bridge
Click Image for Full Color View
| Engineer / Architect: |
Engineers: Fay Spofford & Thorndike Architects: Haven & Hoyt |
|---|---|
| Location: |

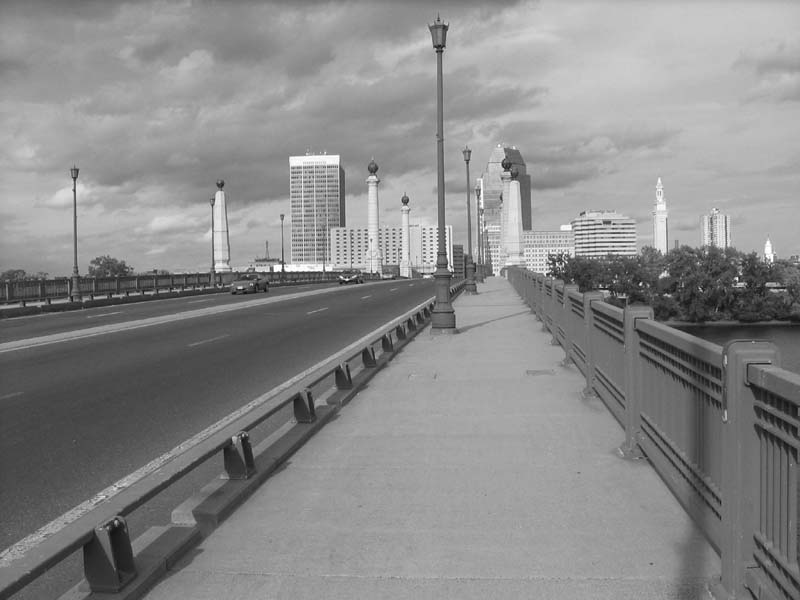

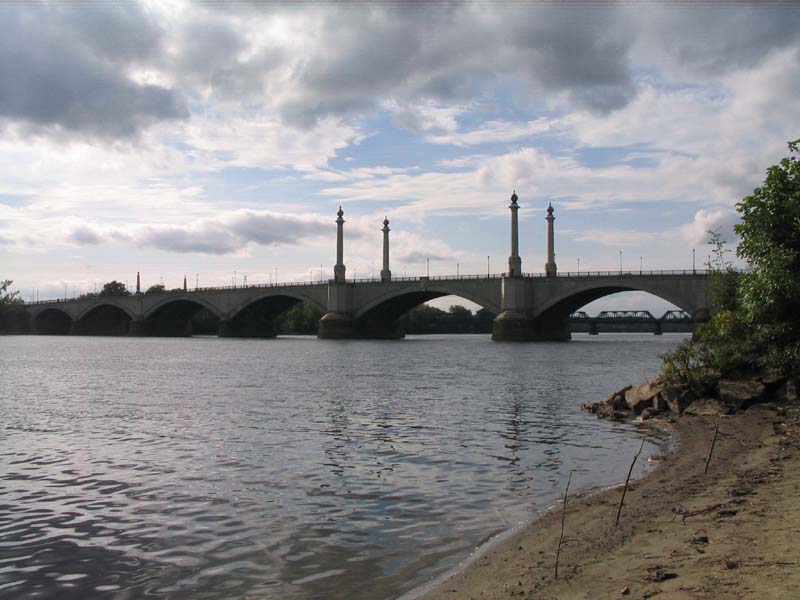

Route 147 (Memorial Avenue) - Springfield/West Springfield Western Massachusetts |
| Year Built: |
Built: 1922 Rebuilt: 1996 |

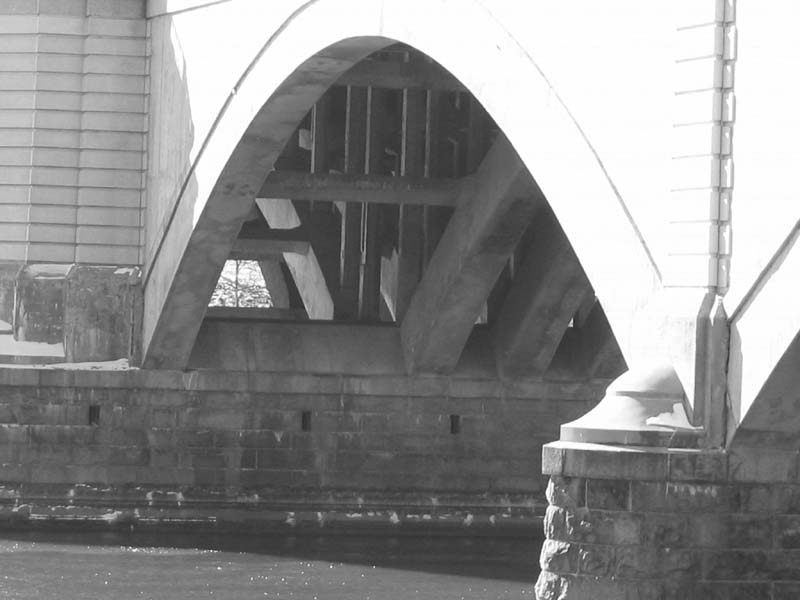

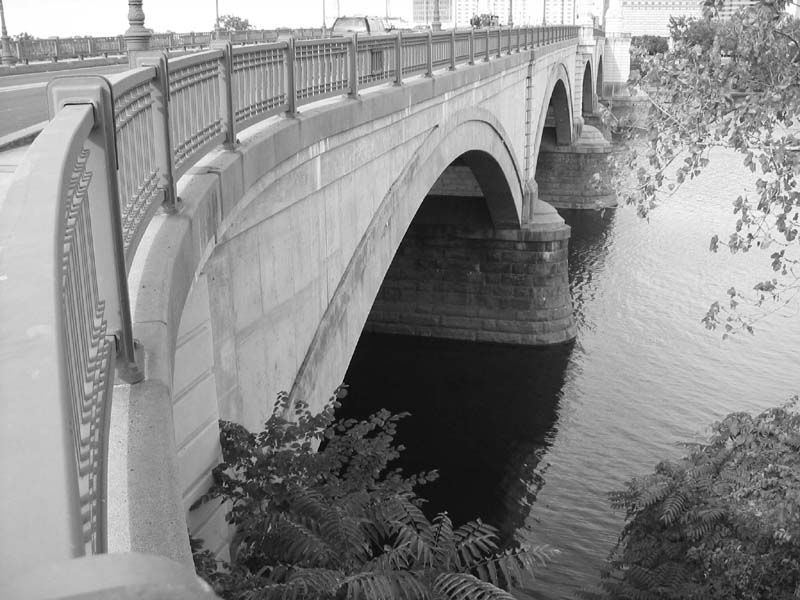

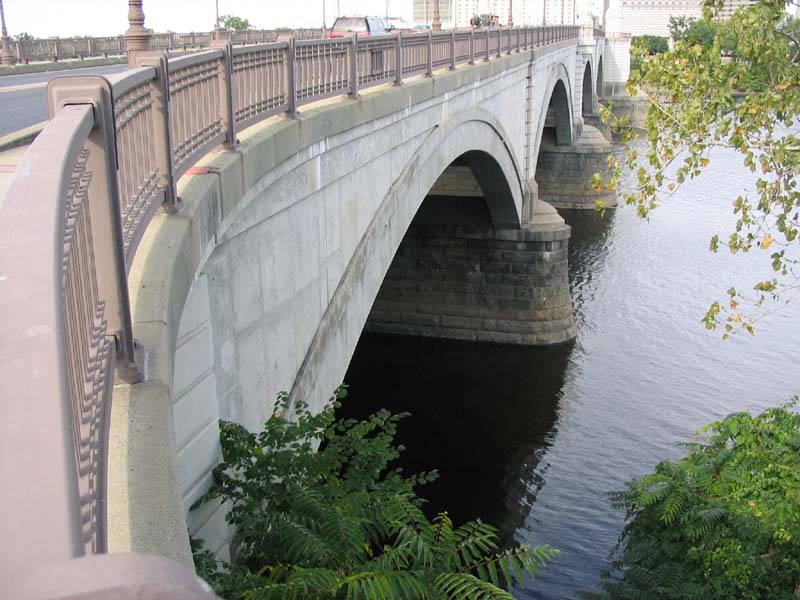

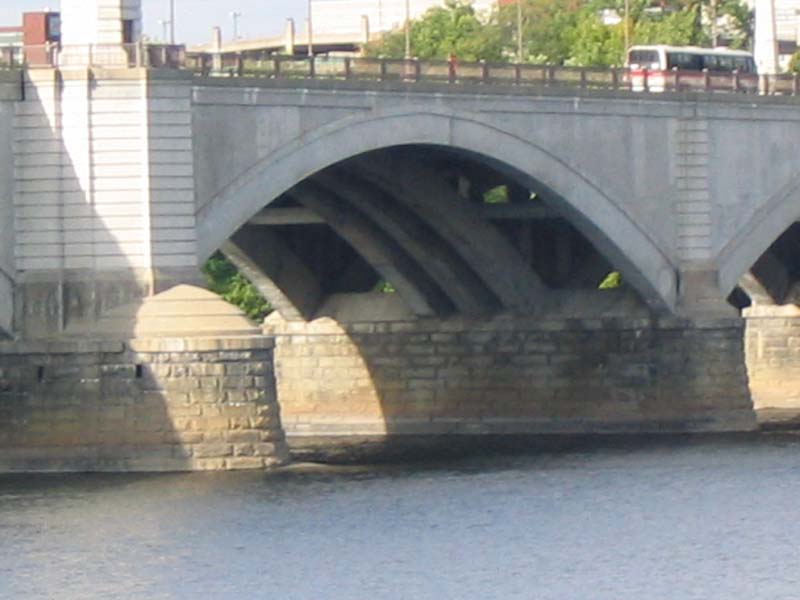

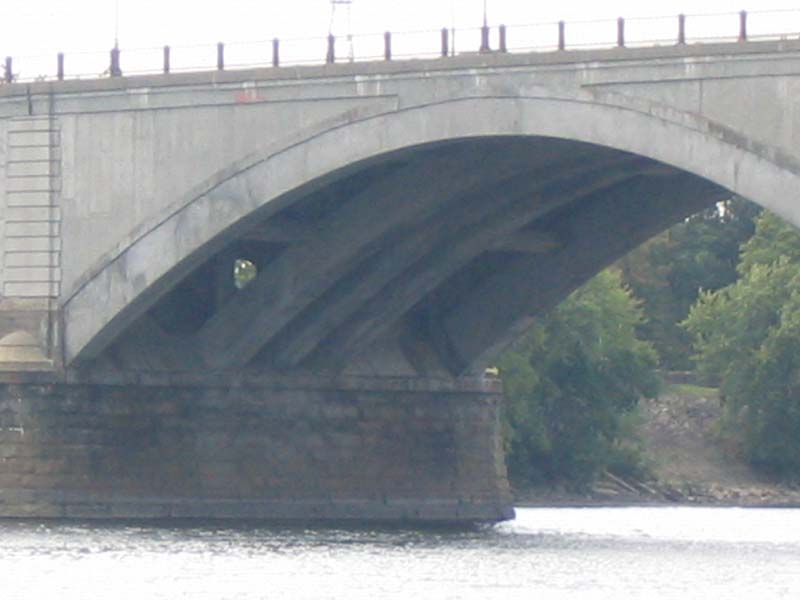

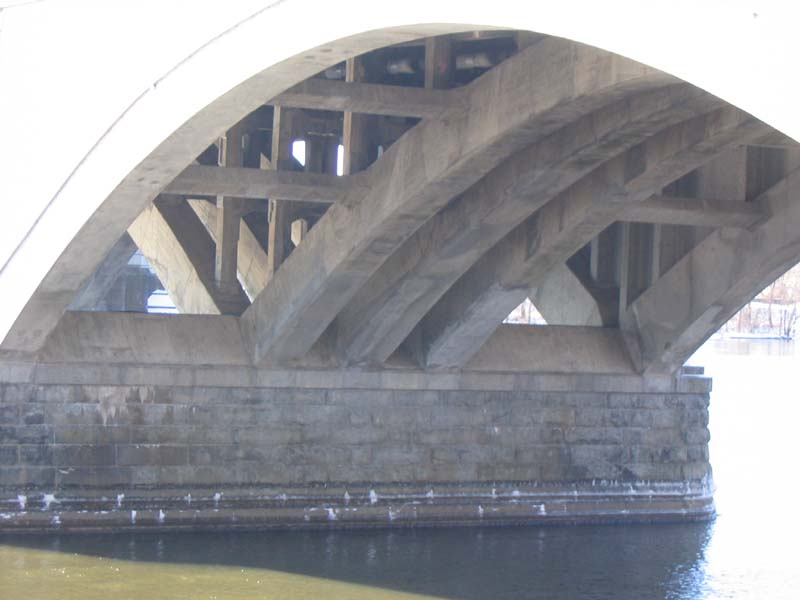

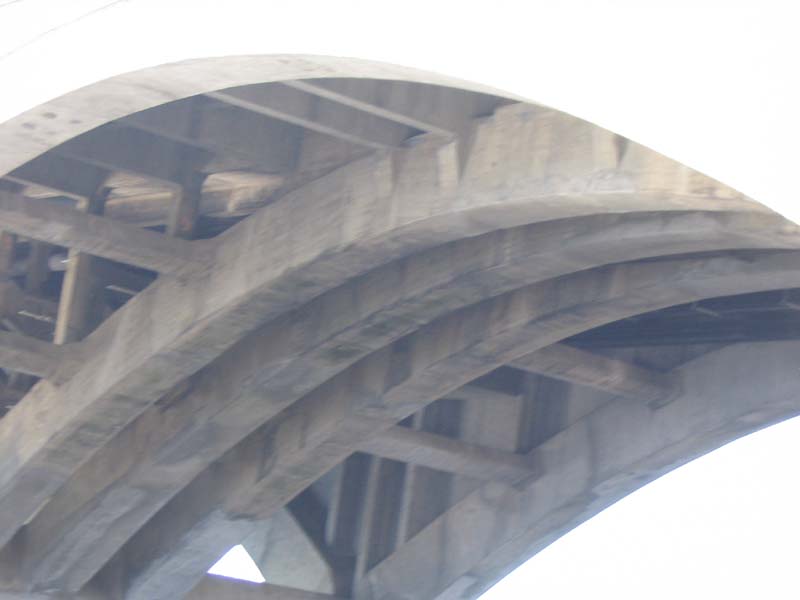

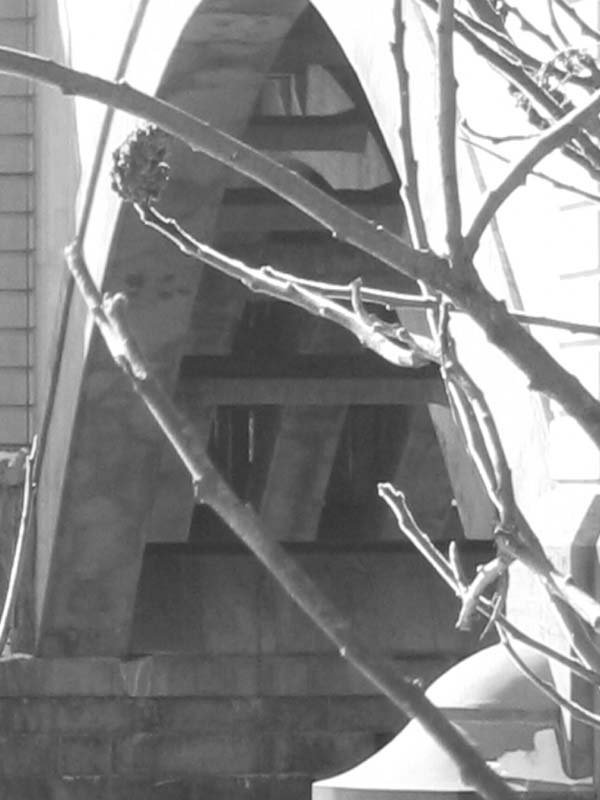

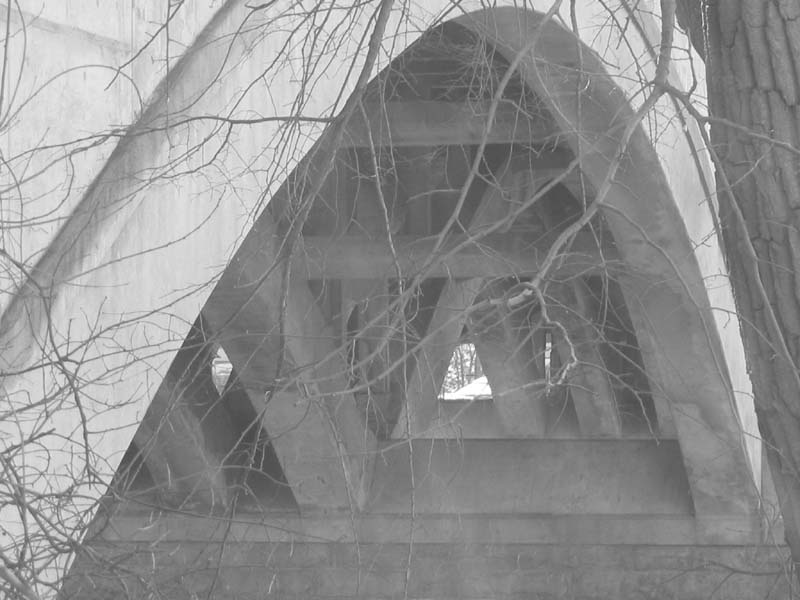

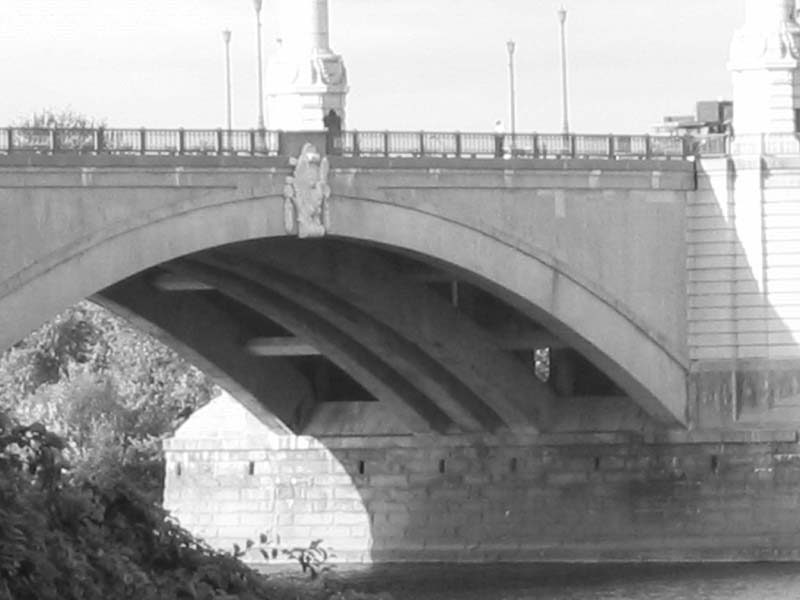

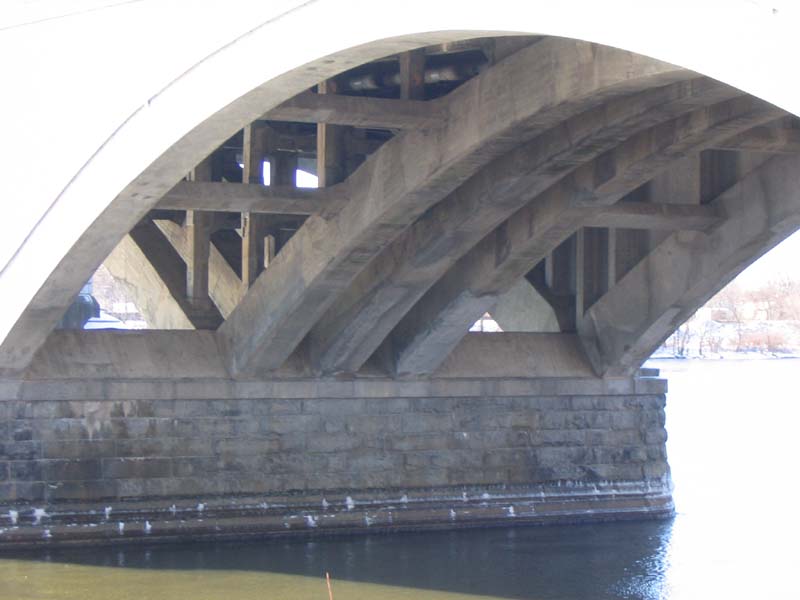

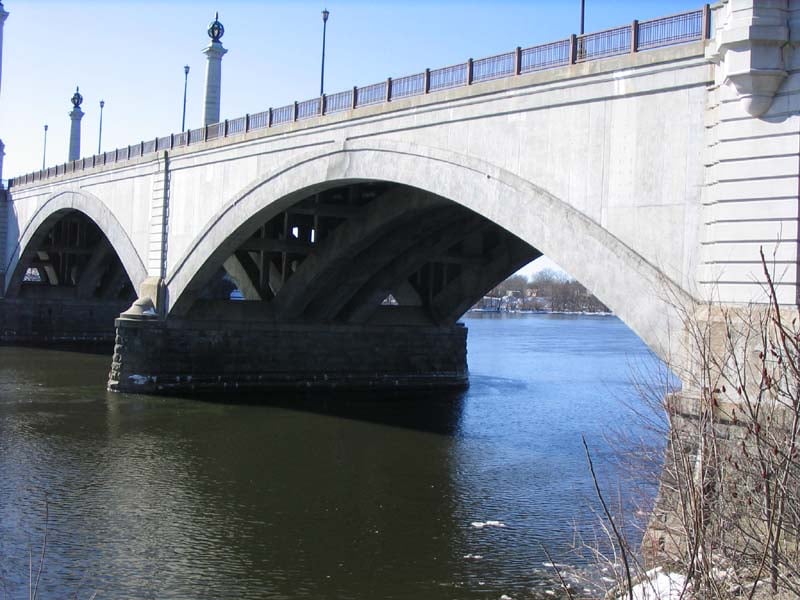

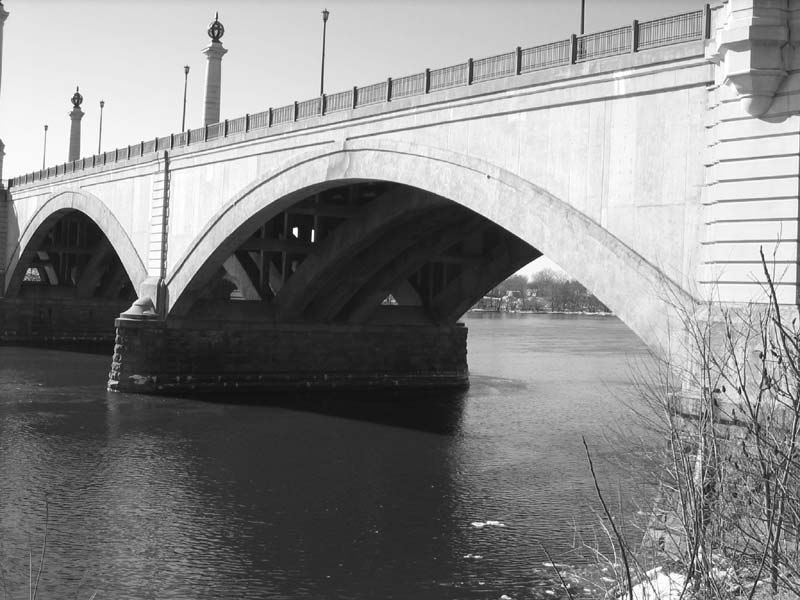

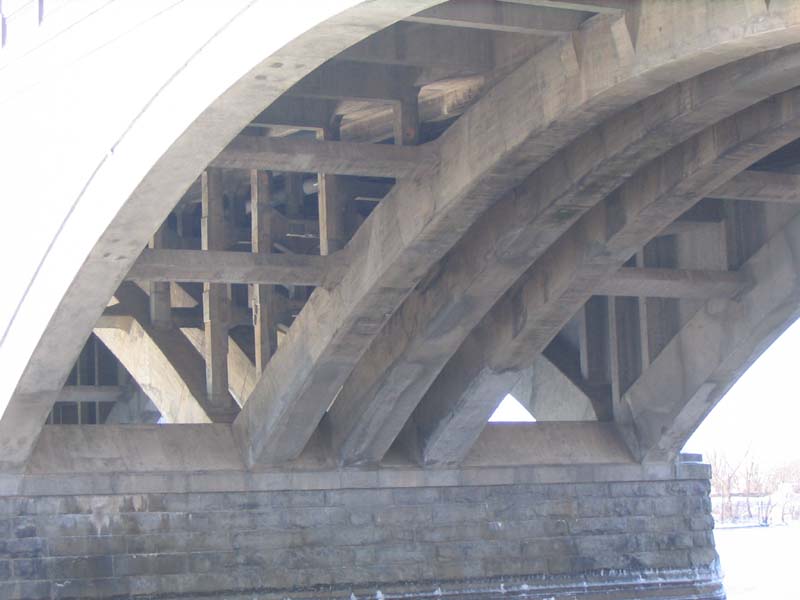

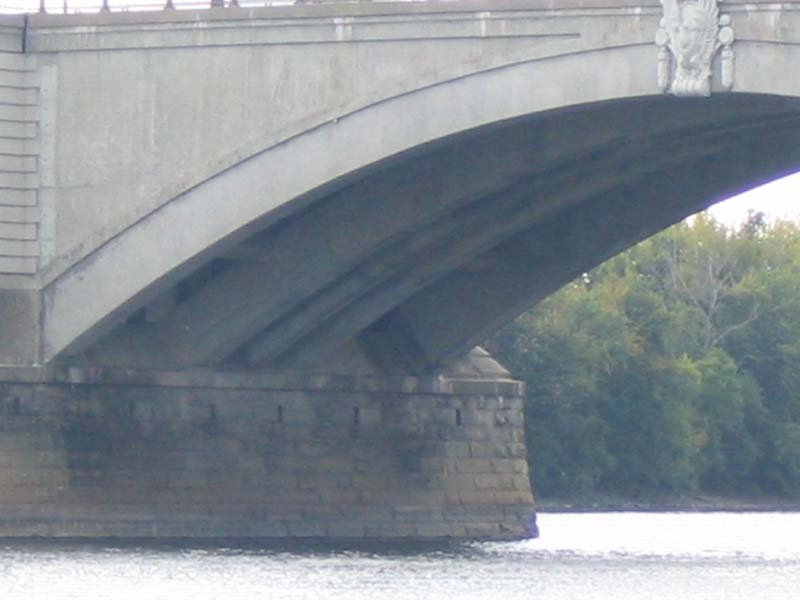

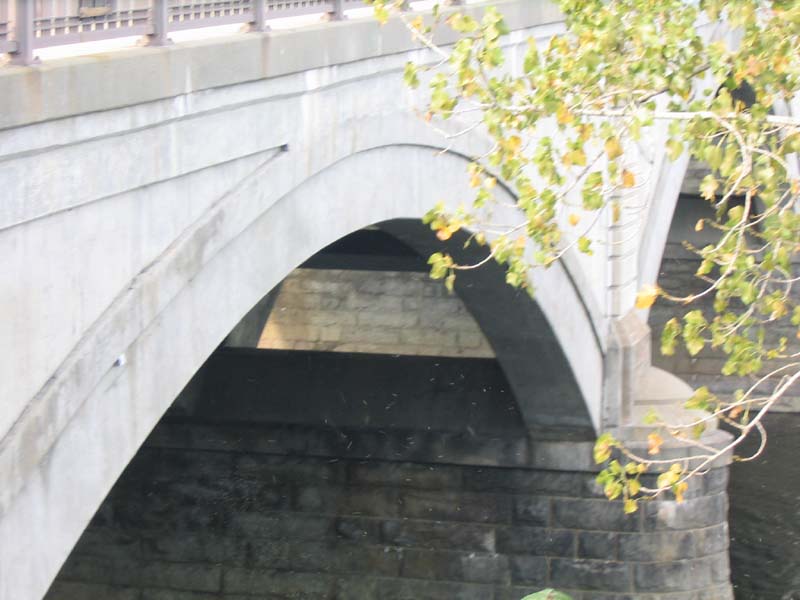

| Structural Form: | Melan-type reinforced concrete bridge with open-spandrel rib arches |
| Historical Details: | Dedicated as a memorial to "those who had died as pioneers, and soldiers in the Revolutionary, Civil and Foreign Wars" |

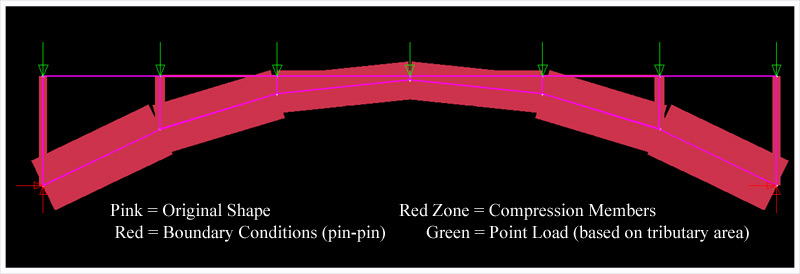

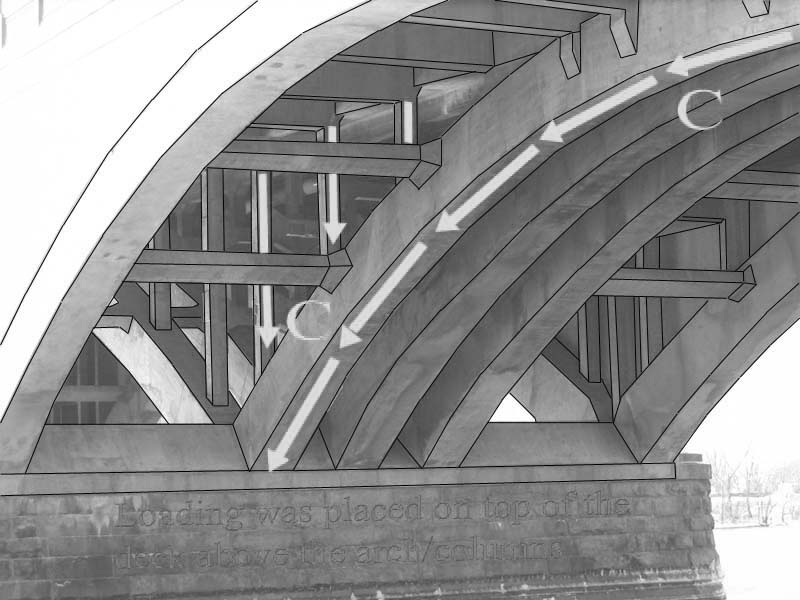

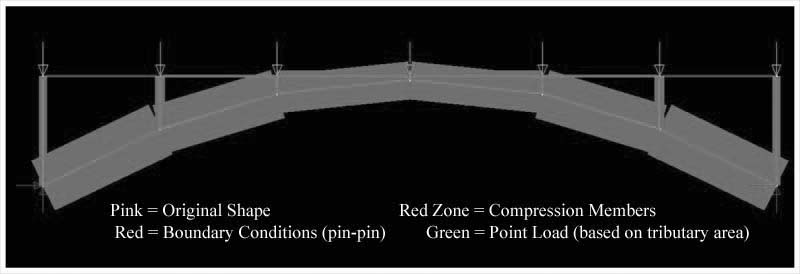

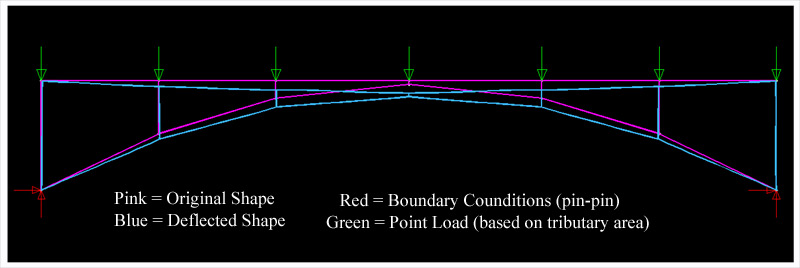

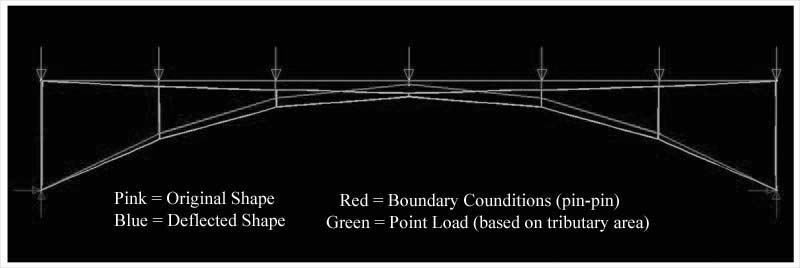

| Technical Details: | The axial force diagram (second to last image) is a 2D model of the concrete arches. The concrete arches are a perfect solution to the high compressive forces found in primarily the arches. The columns are also in compression as forces are being transferred from the road to the supports. |
| Image Source(s): | Allen Sit |
| References: | MassDOT - Memorial Bridge |
