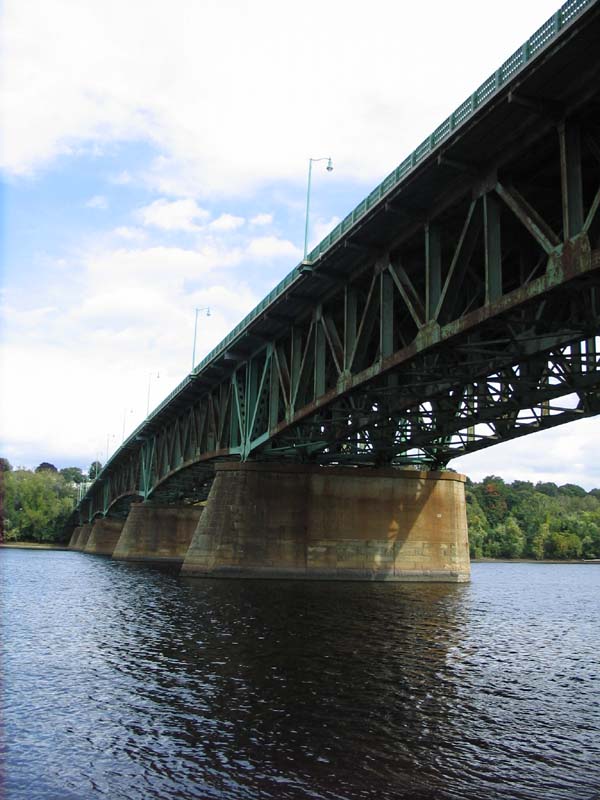

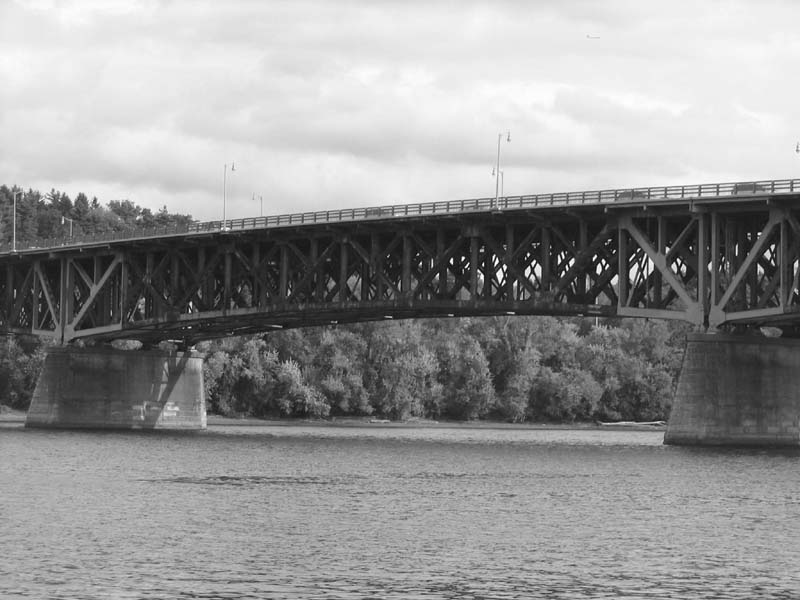

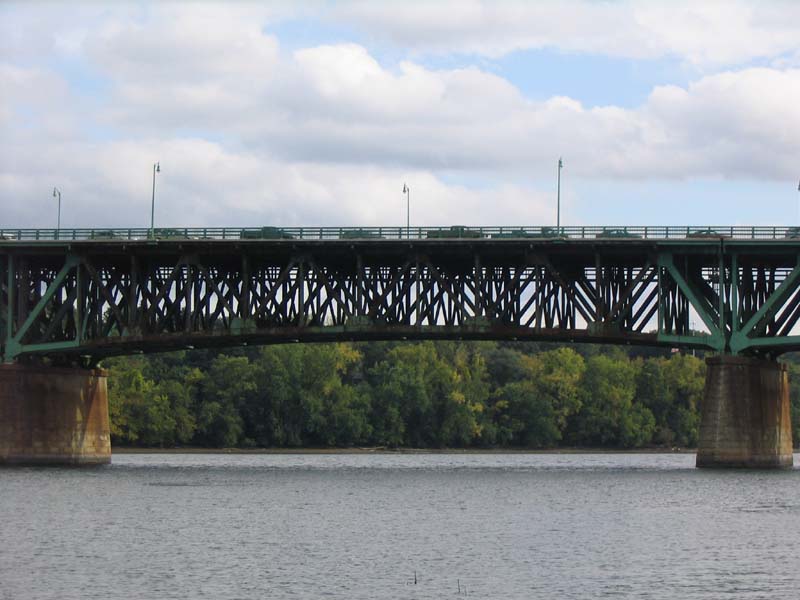

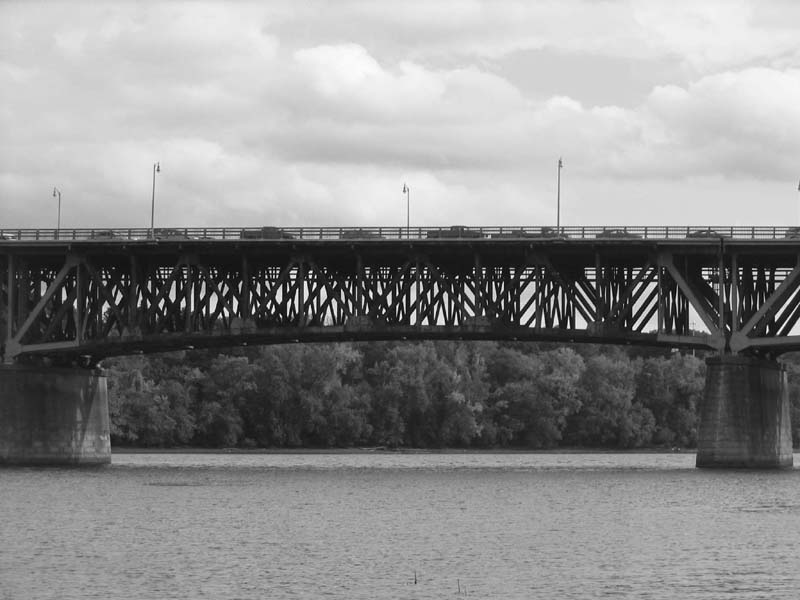

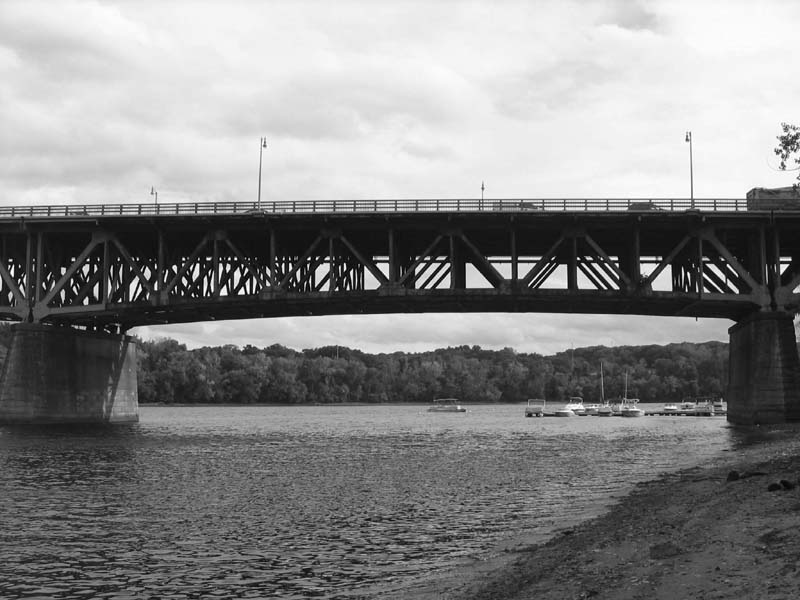

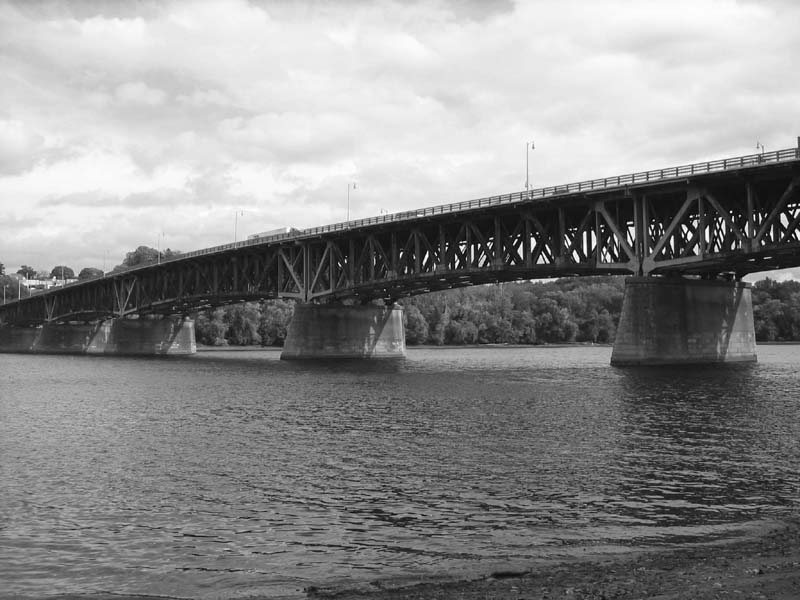

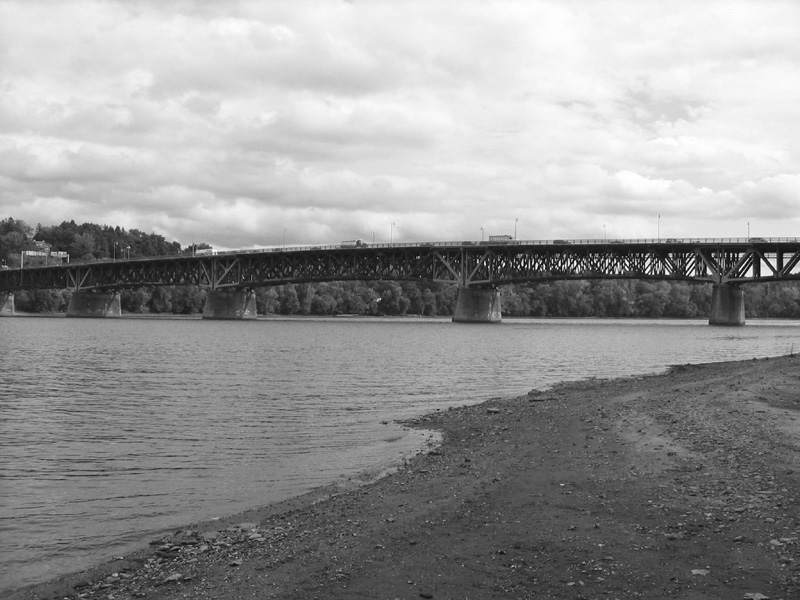

South End Bridge
Click Image for Full Color View
| Engineer / Architect: | N/A |
|---|---|
| Location: |
Route 5 off of I91 - Springfield Western Massachusetts |
| Year Built: | N/A |
| Structural Form: | N/A |
| Historical Details: | N/A |

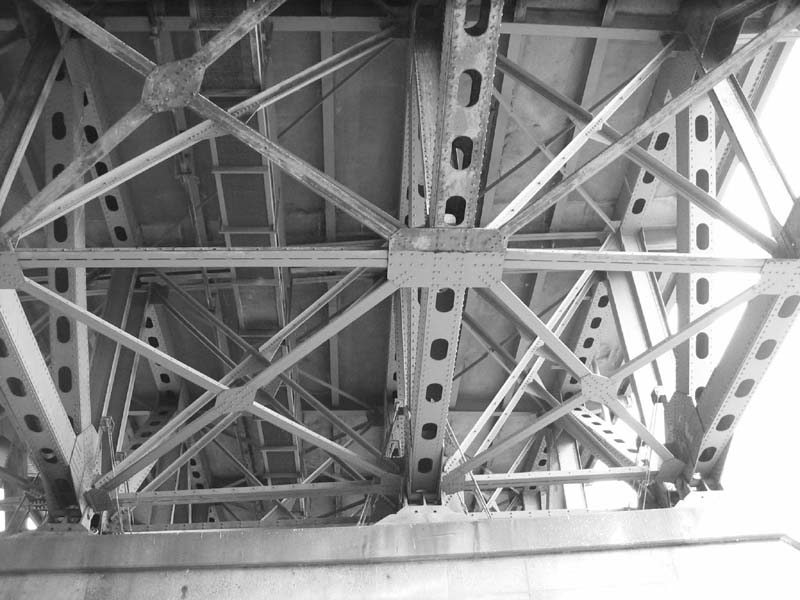

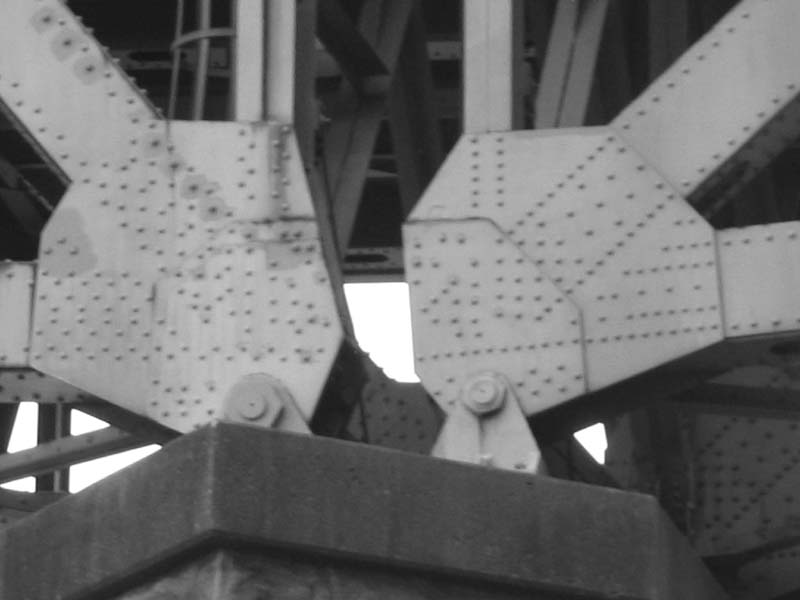

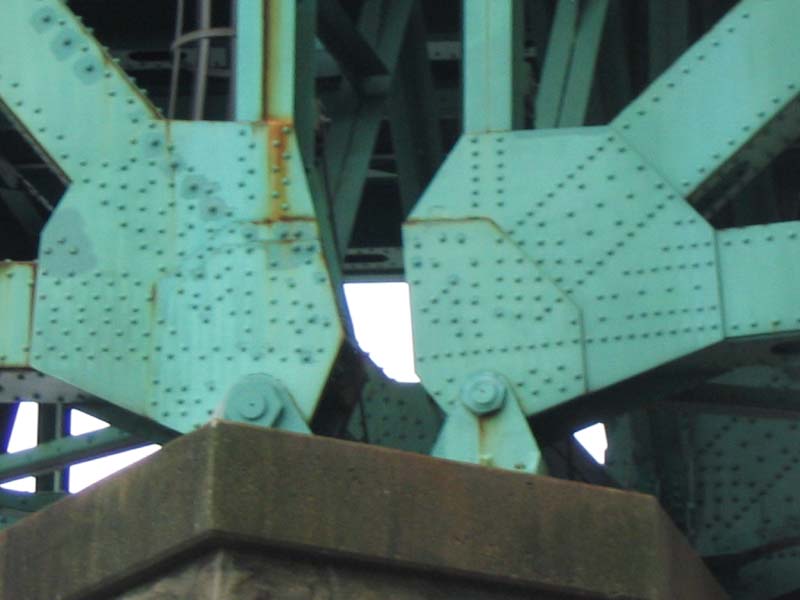

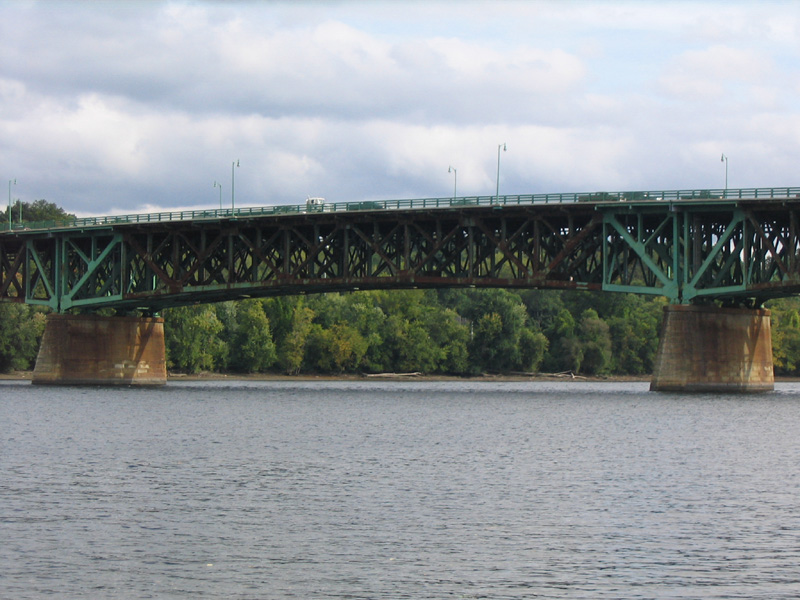

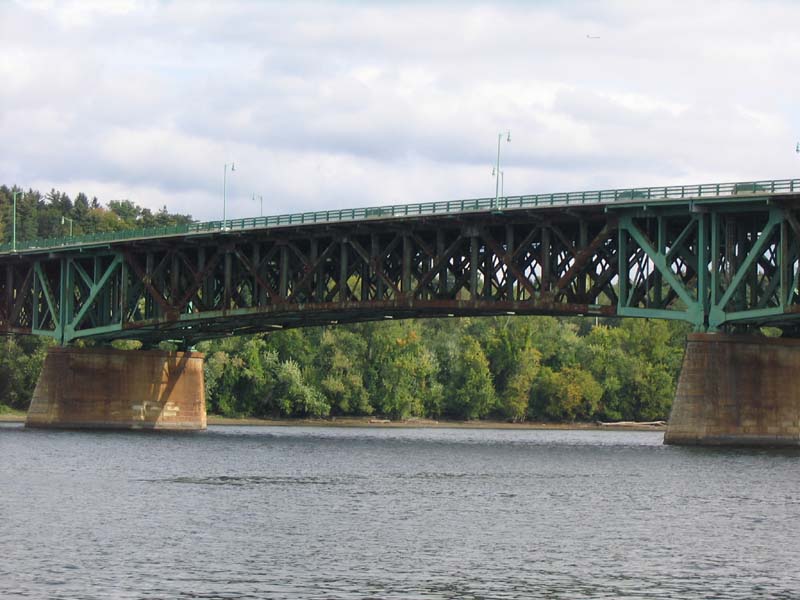

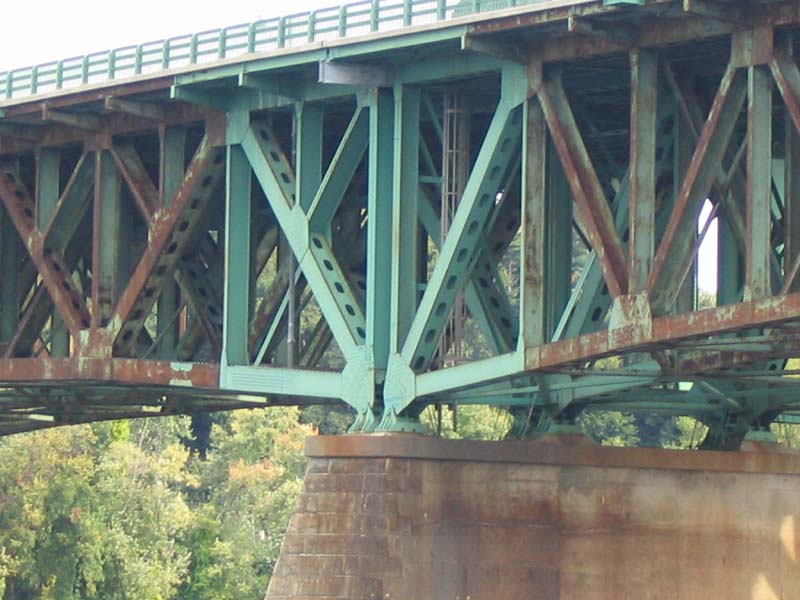

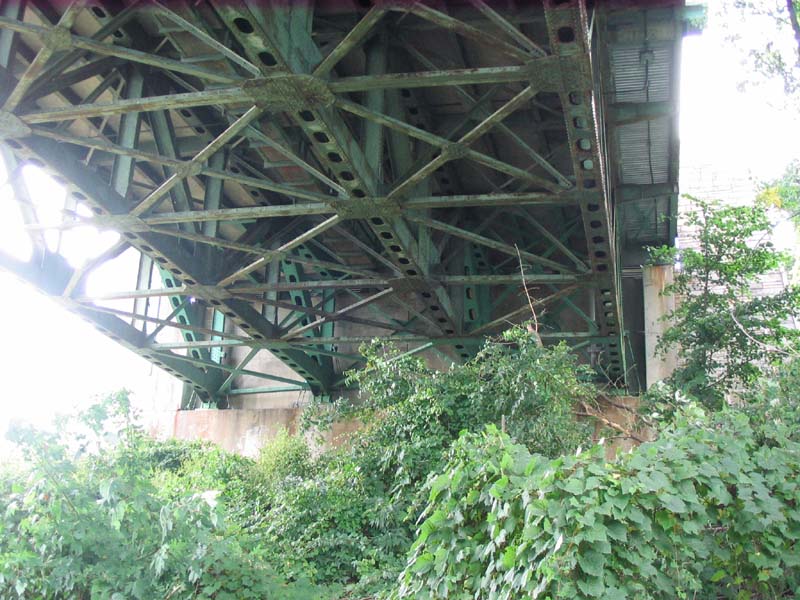

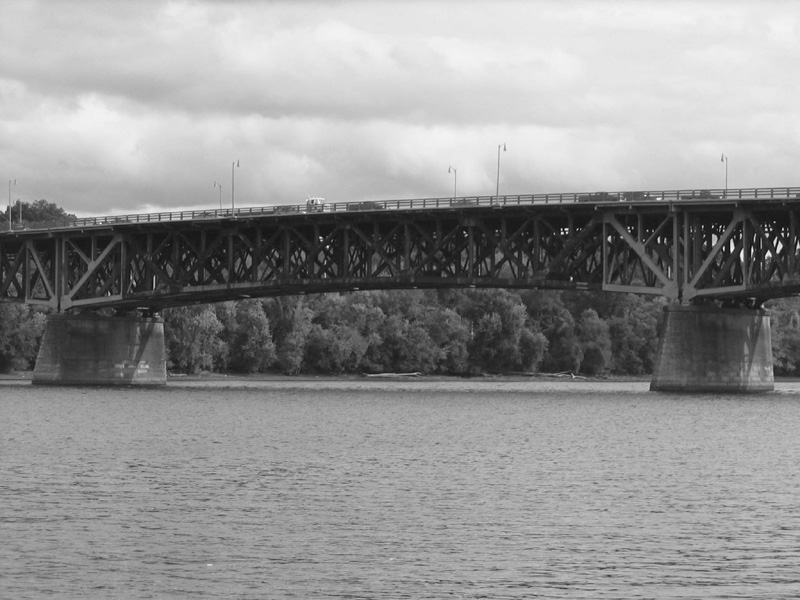

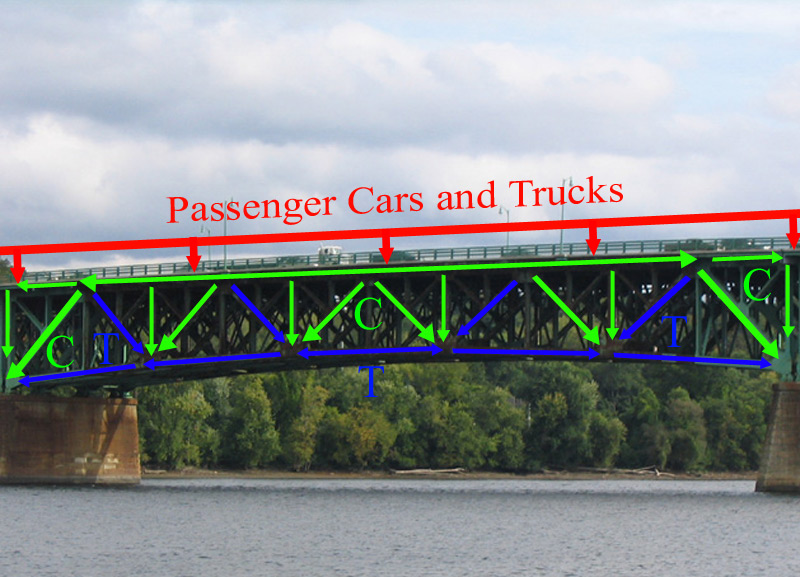

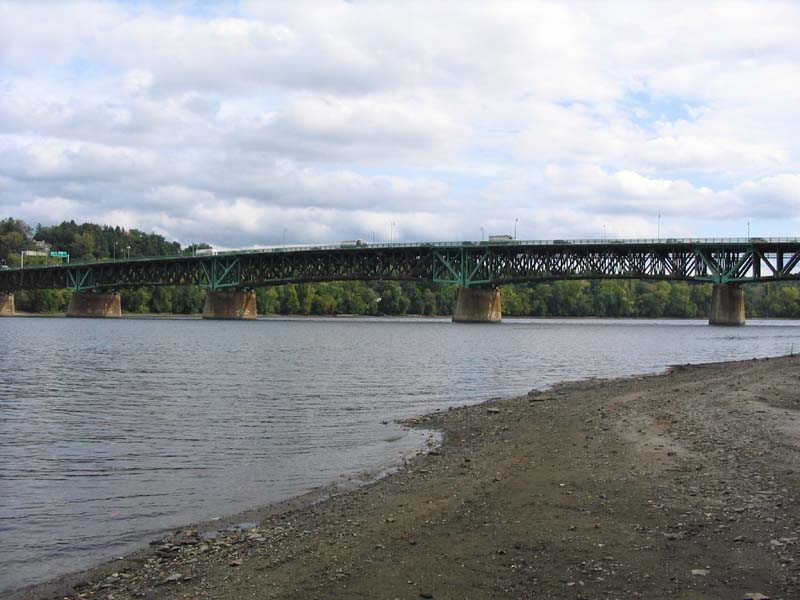

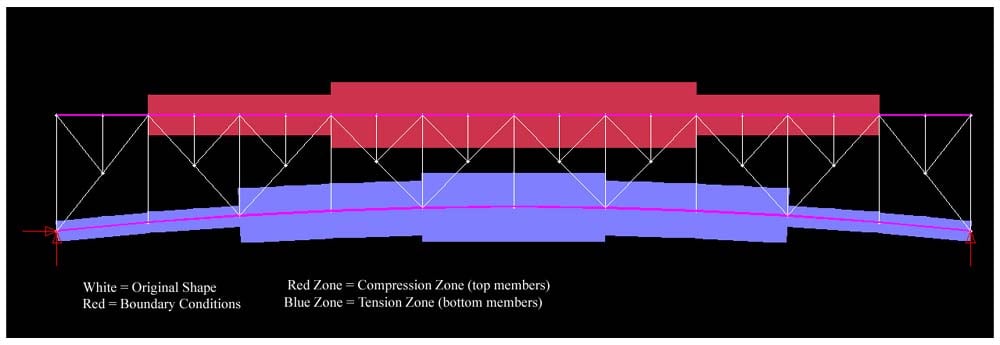

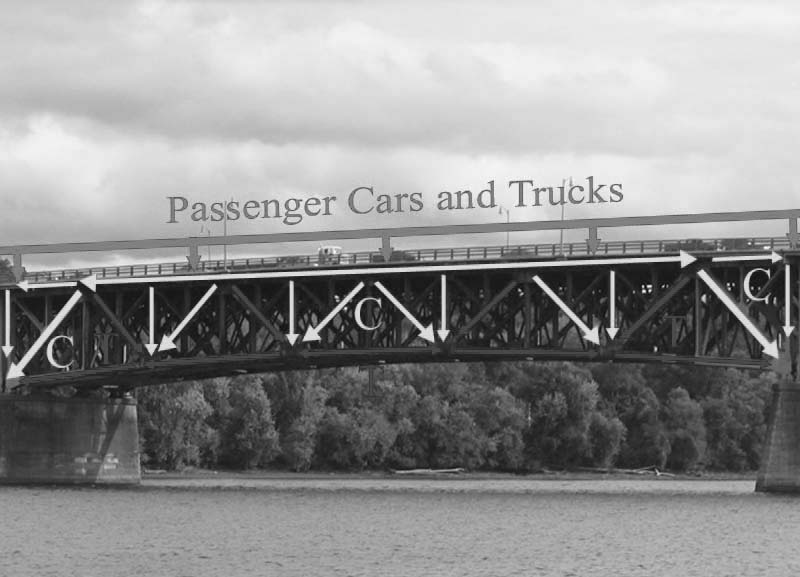

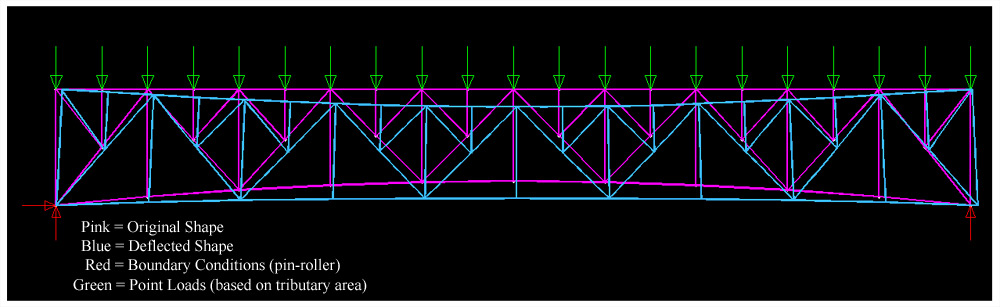

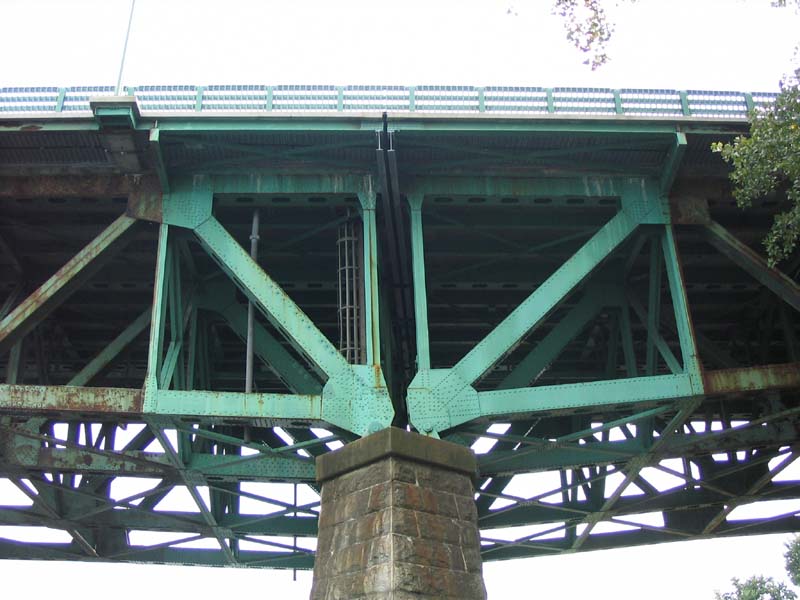

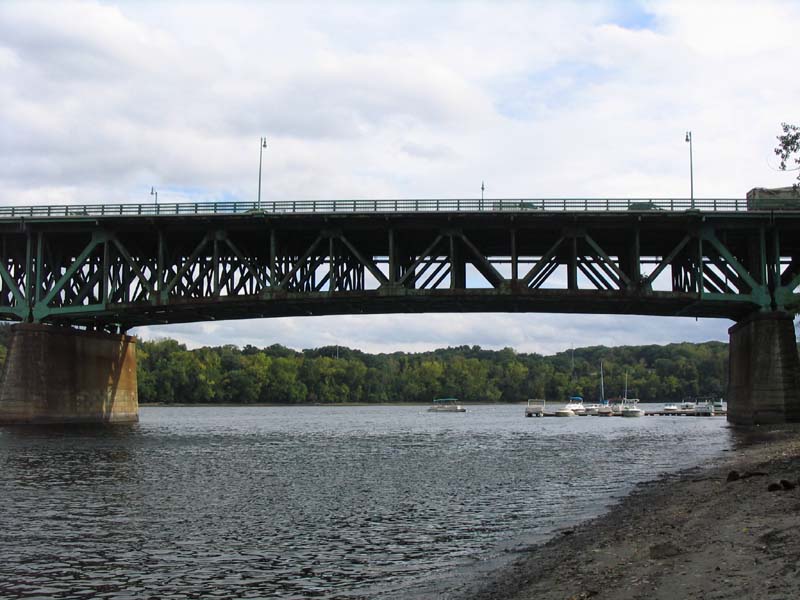

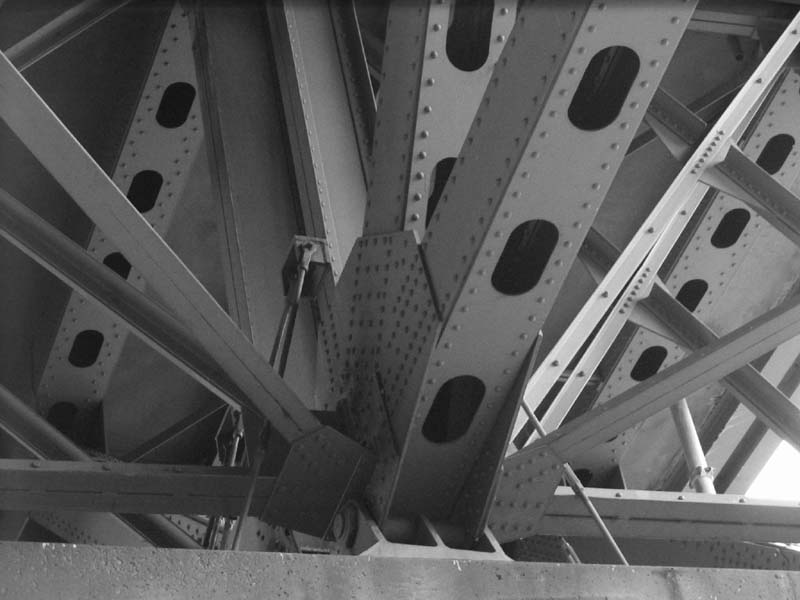

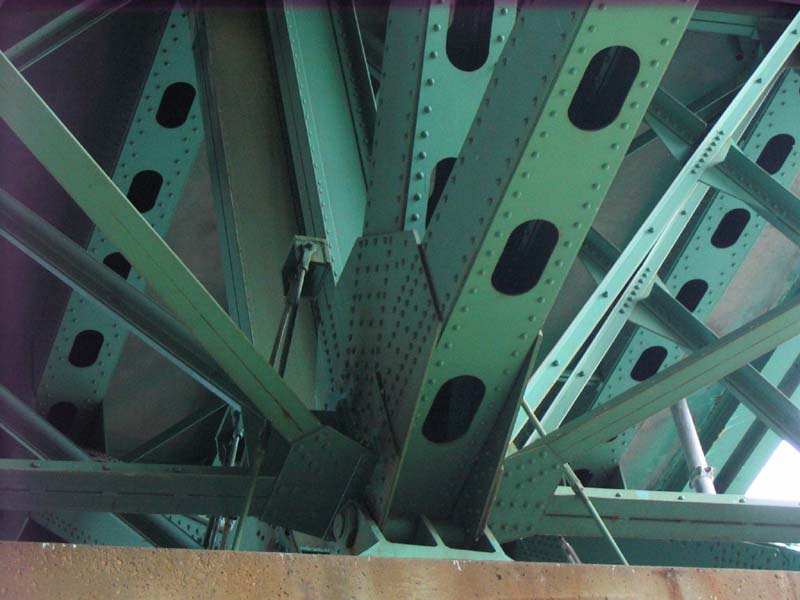

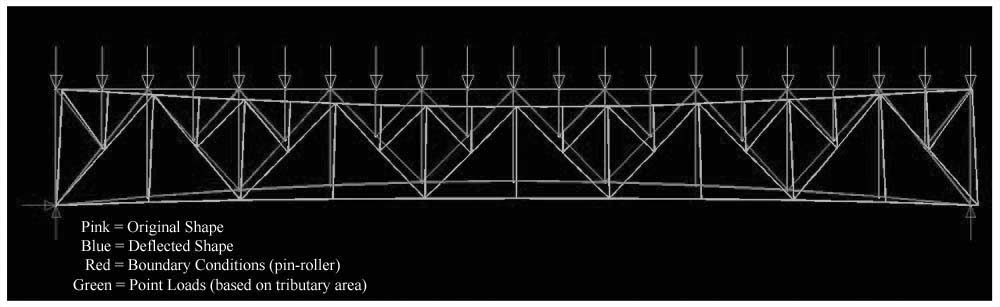

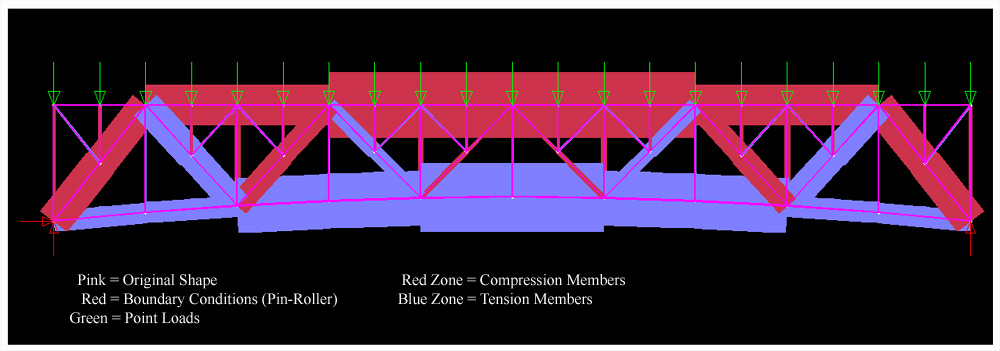

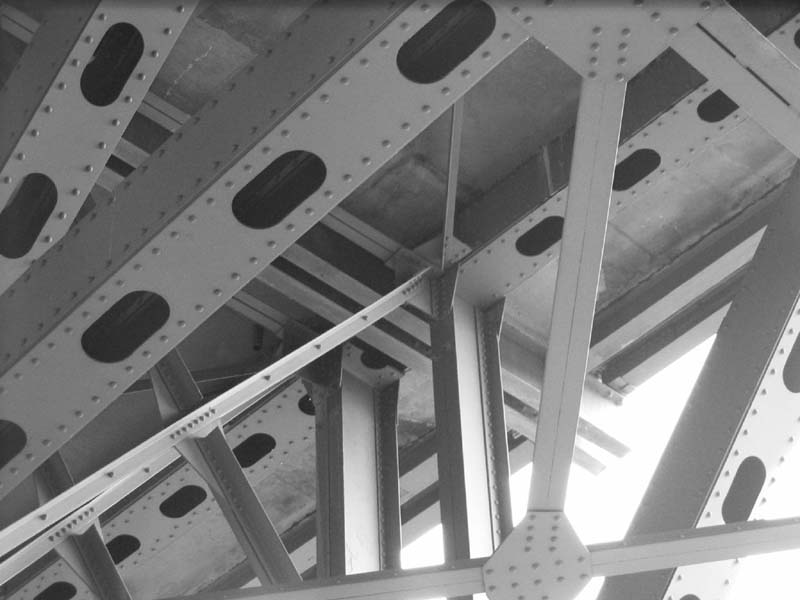

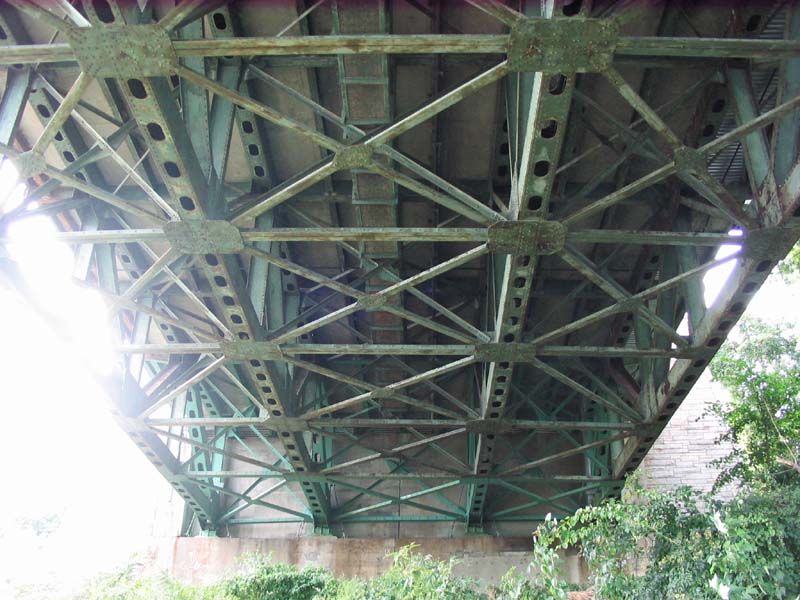

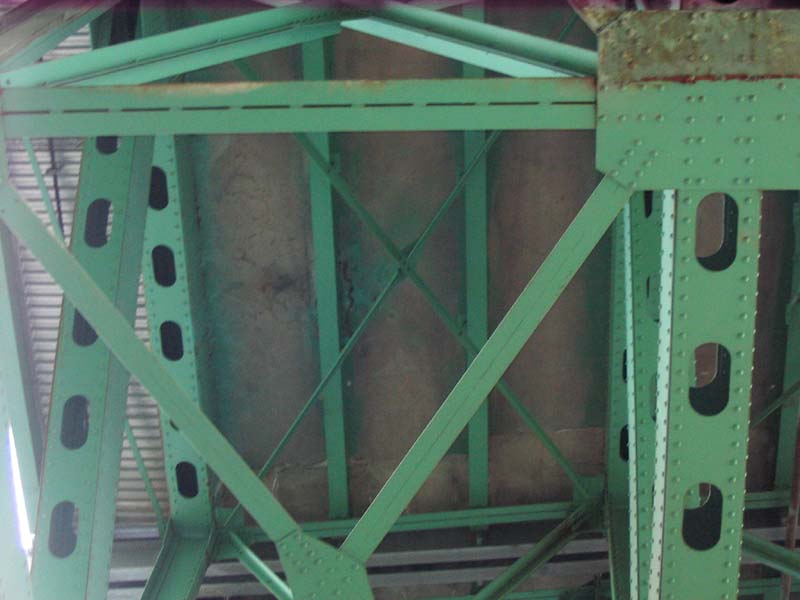

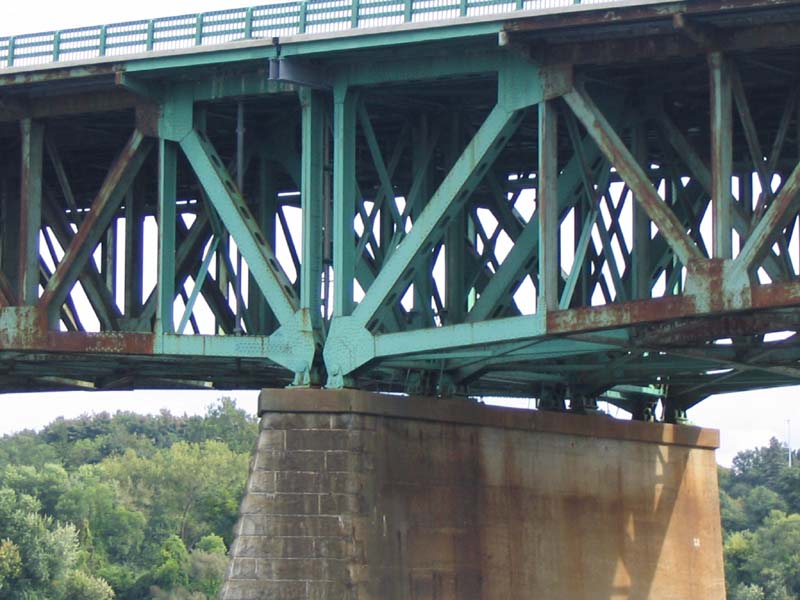

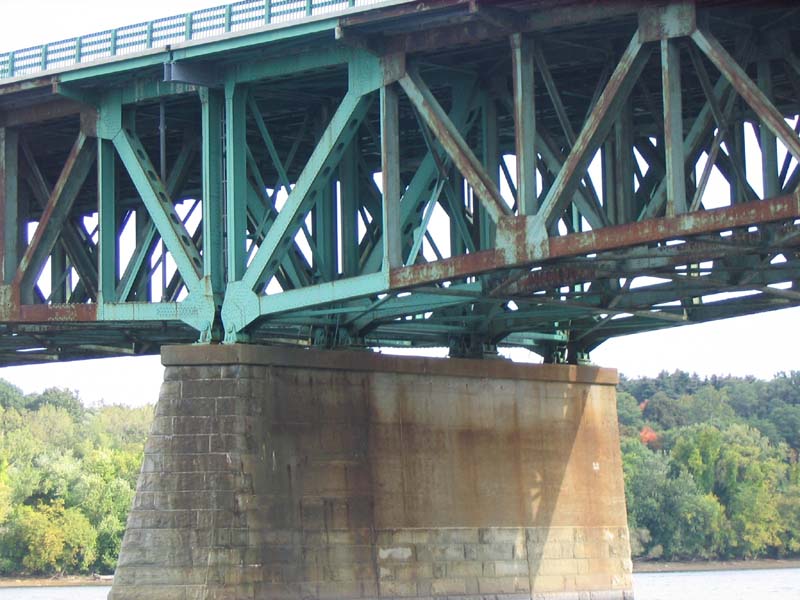

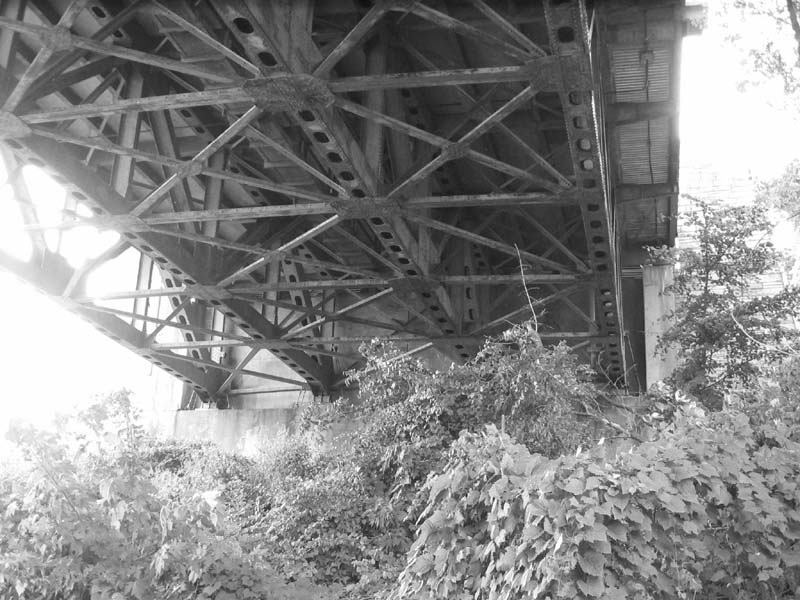

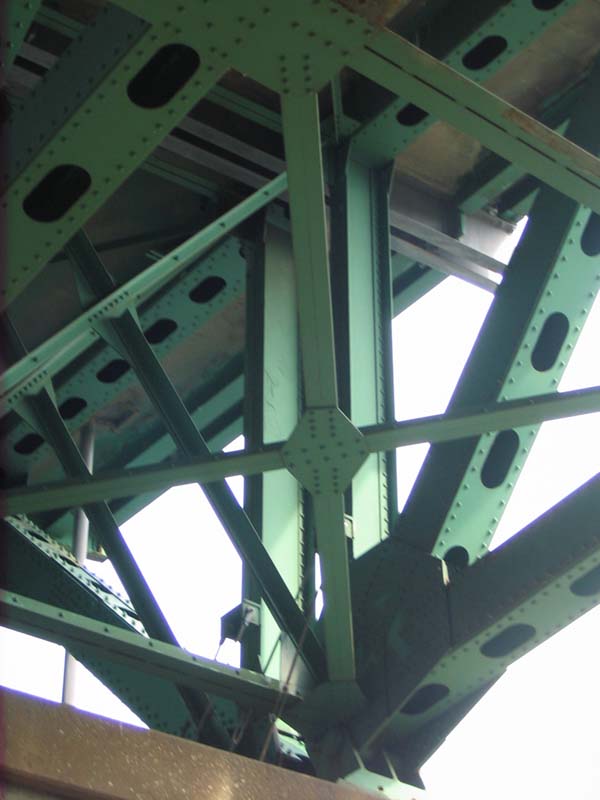

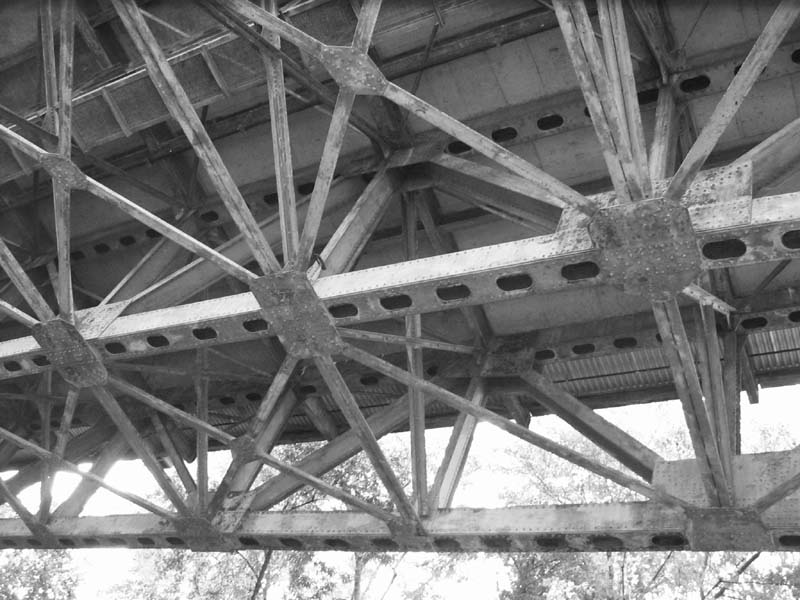

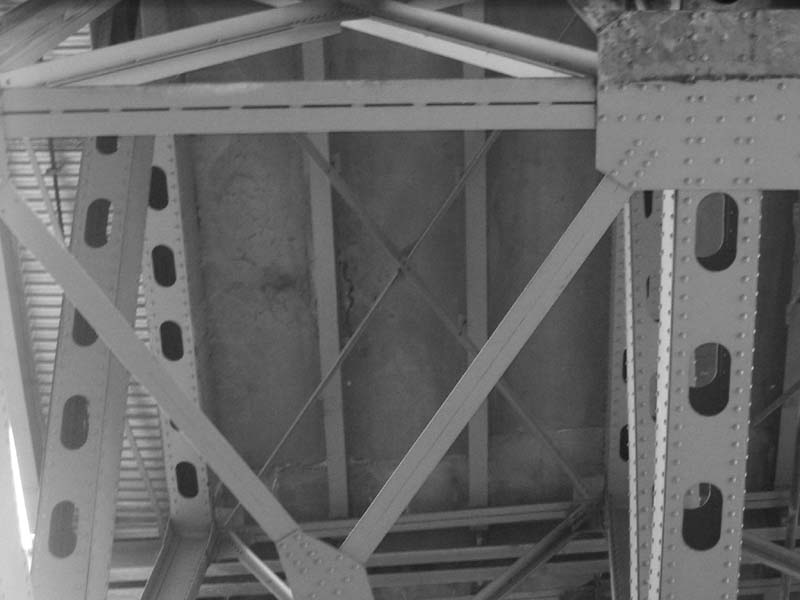

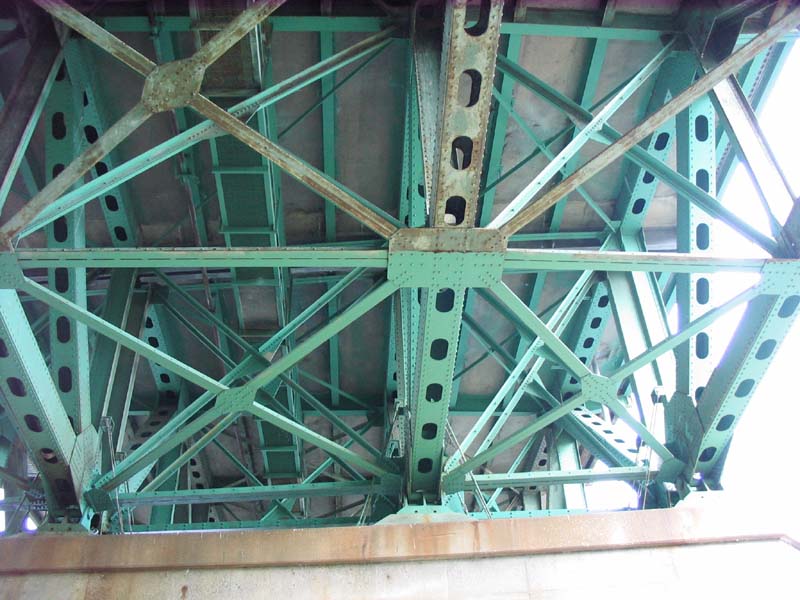

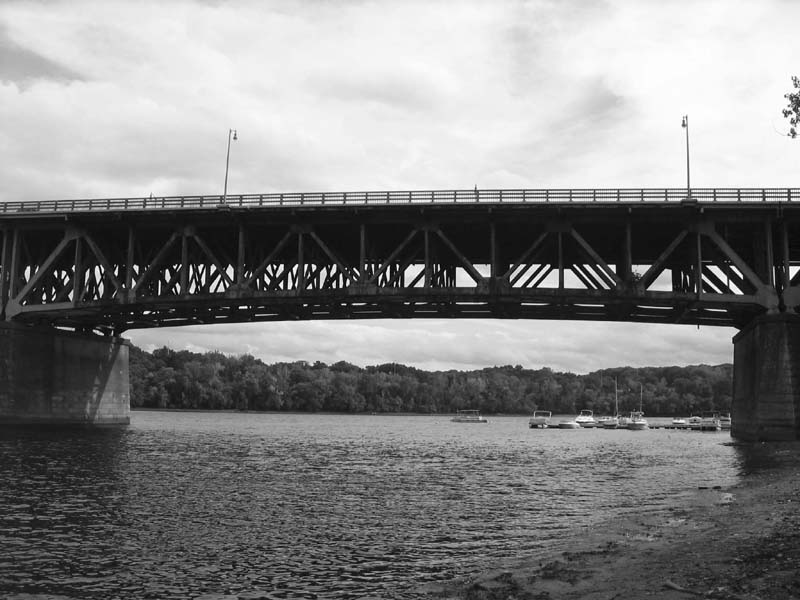

| Technical Details: | This truss with a slight curve in the bottom members is similar to the Norwottuck Rail Trail Bridge where the top members are in compression and the bottom members are in tension. The diagonal members alternate between tension and compression, as found in the last image. |
| Image Source(s): | Allen Sit |
| References: | N/A |
